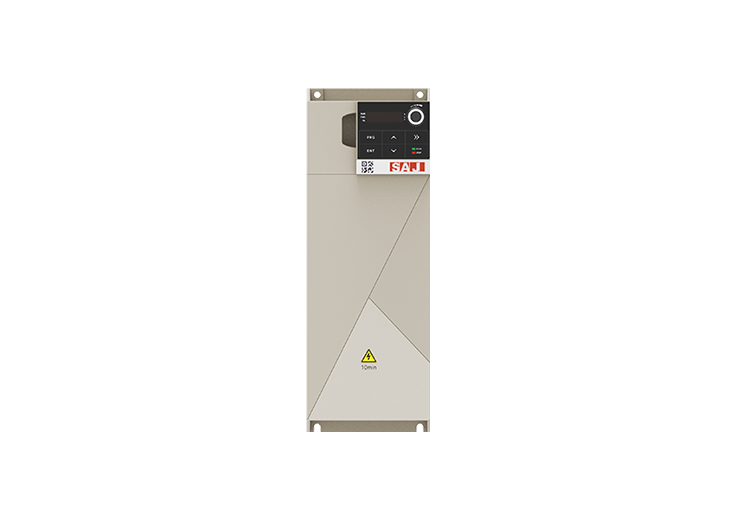

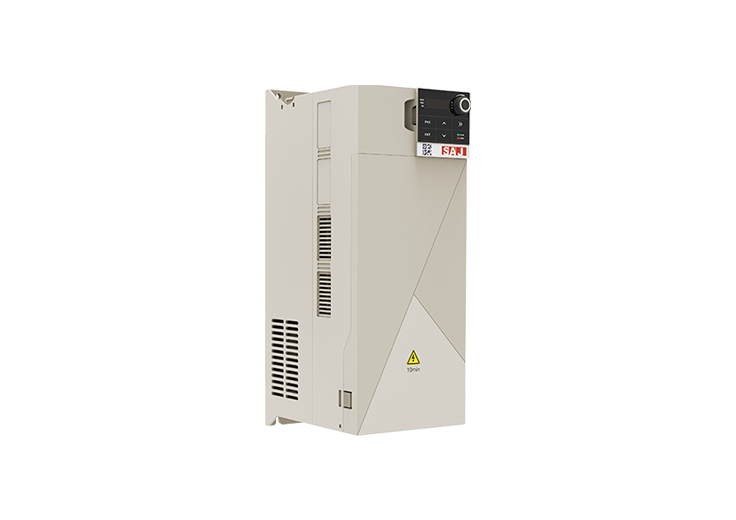

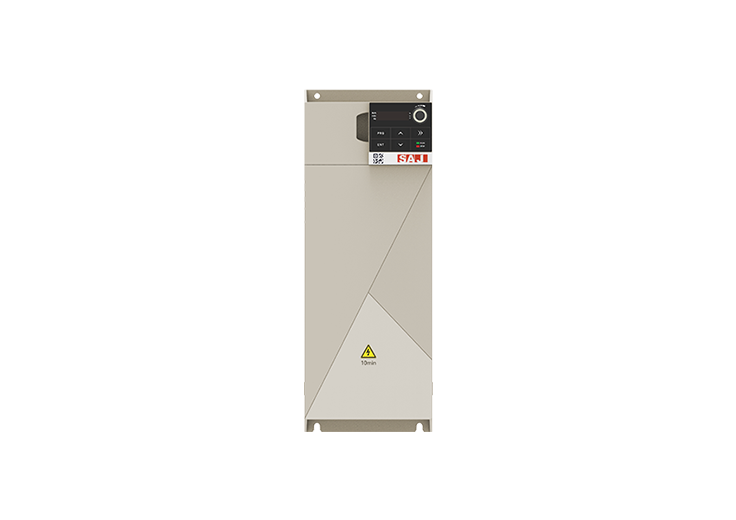

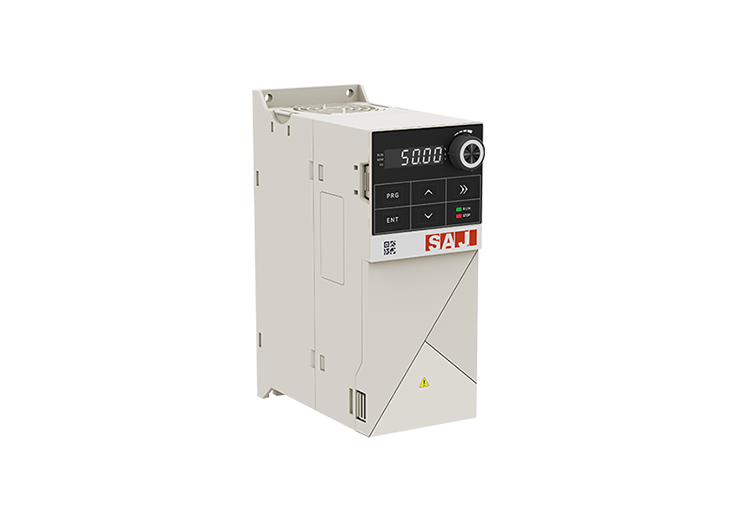

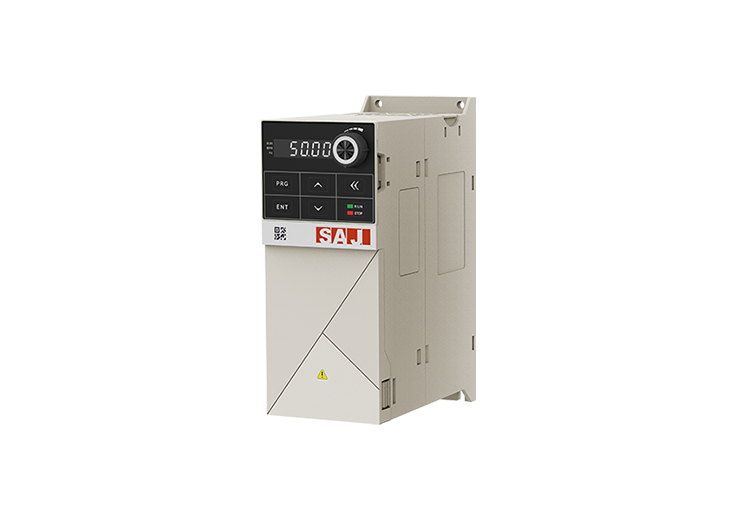

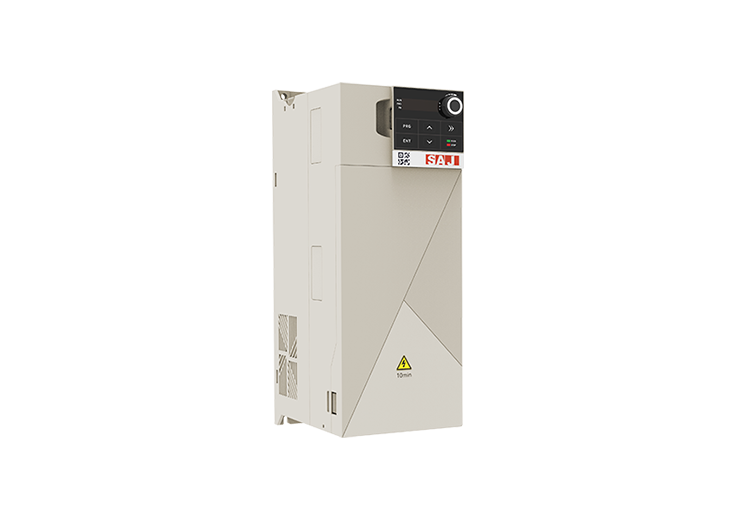

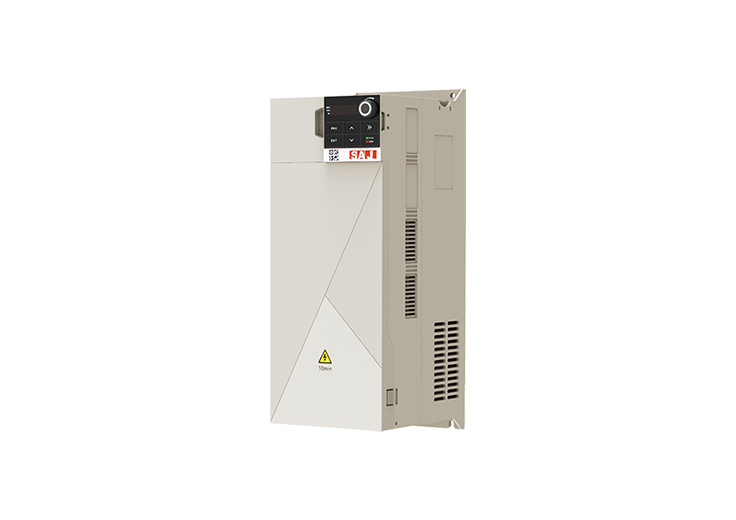

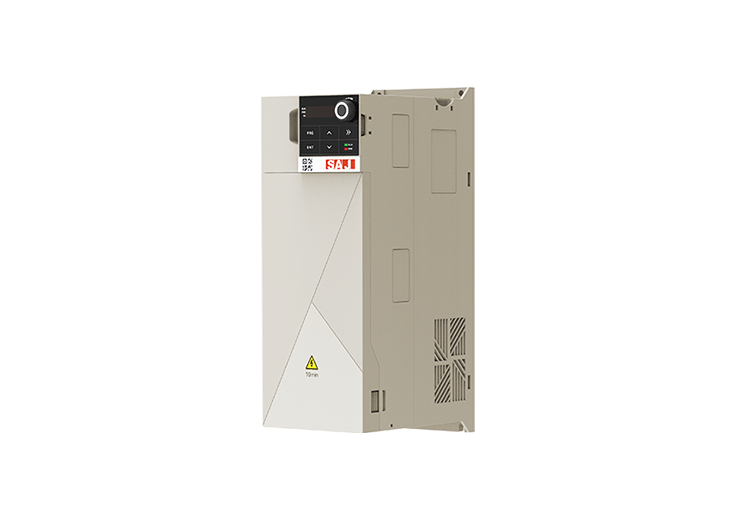

MC20 Multifunction Variable Frequency Drive

1PH 200-240VAC 0.75-2.2kW
3PH 380-480VAC 0.75-37kW

The MC20 series is the latest new product for the general product line, the appearance design is bold and innovative, while ensuring the strong heat dissipation capacity, optimize the product volume, increase the flexibility of the use of the product, and through the multi-function expansion interface can achieve more powerful control functions.

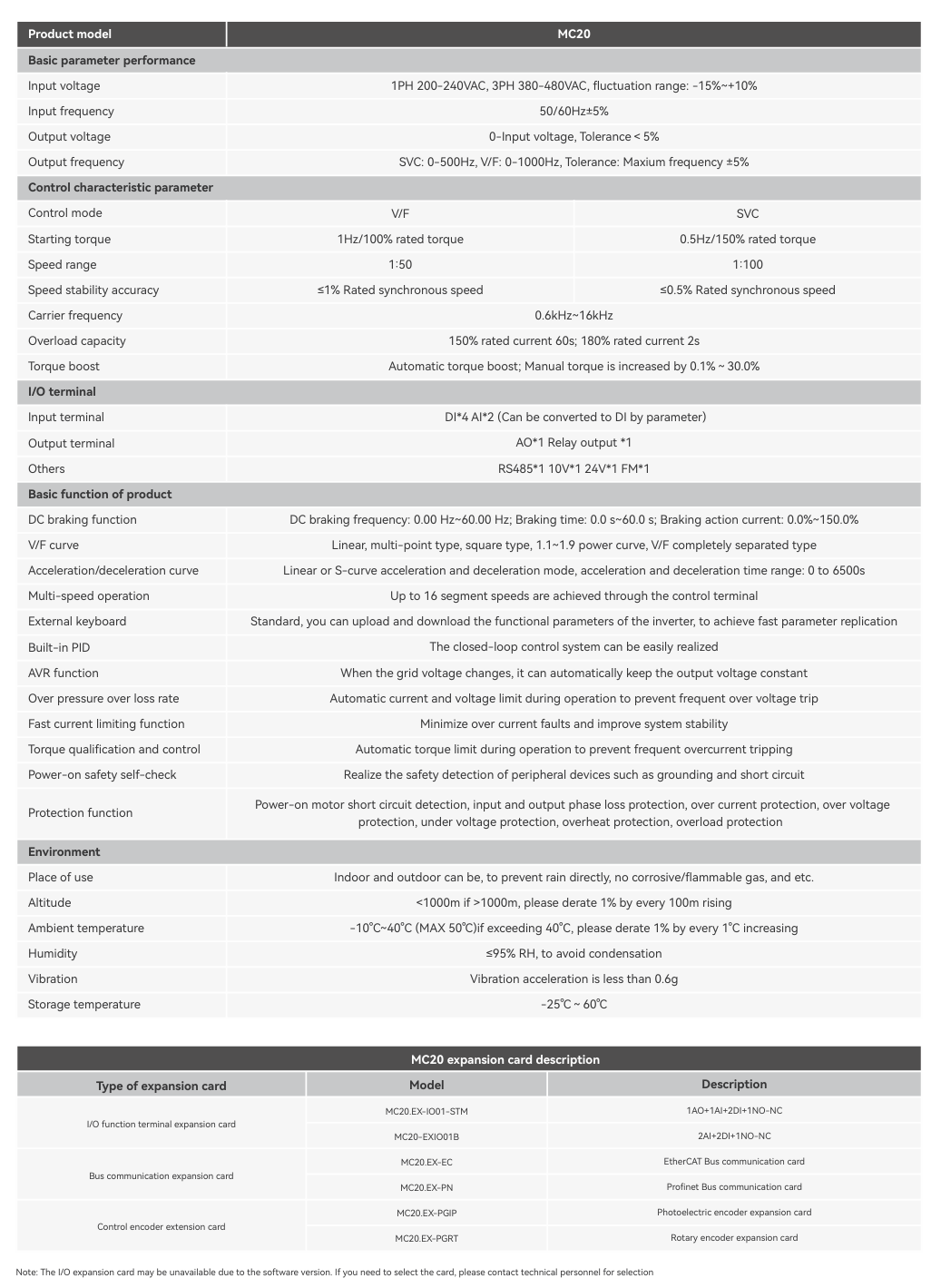

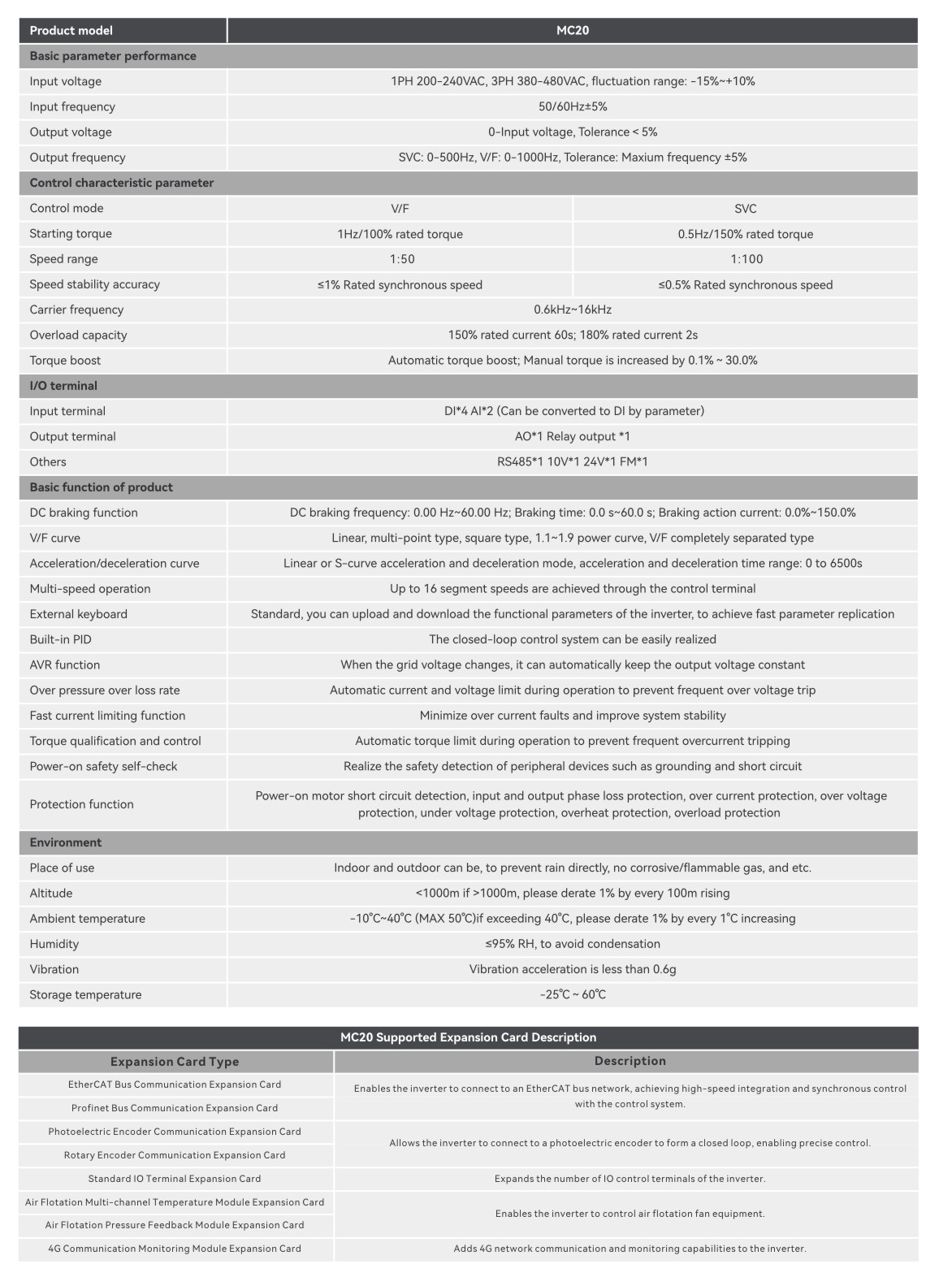

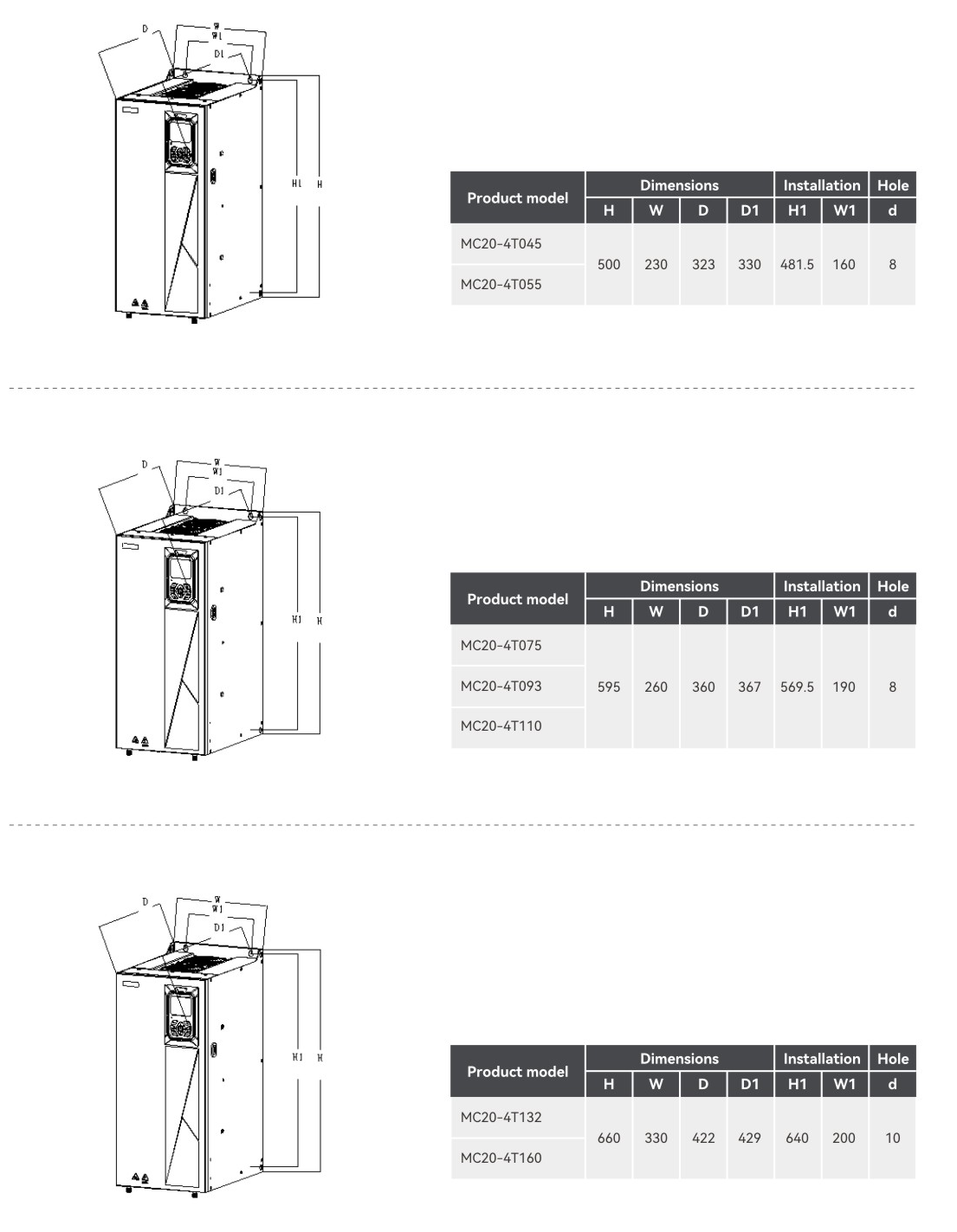

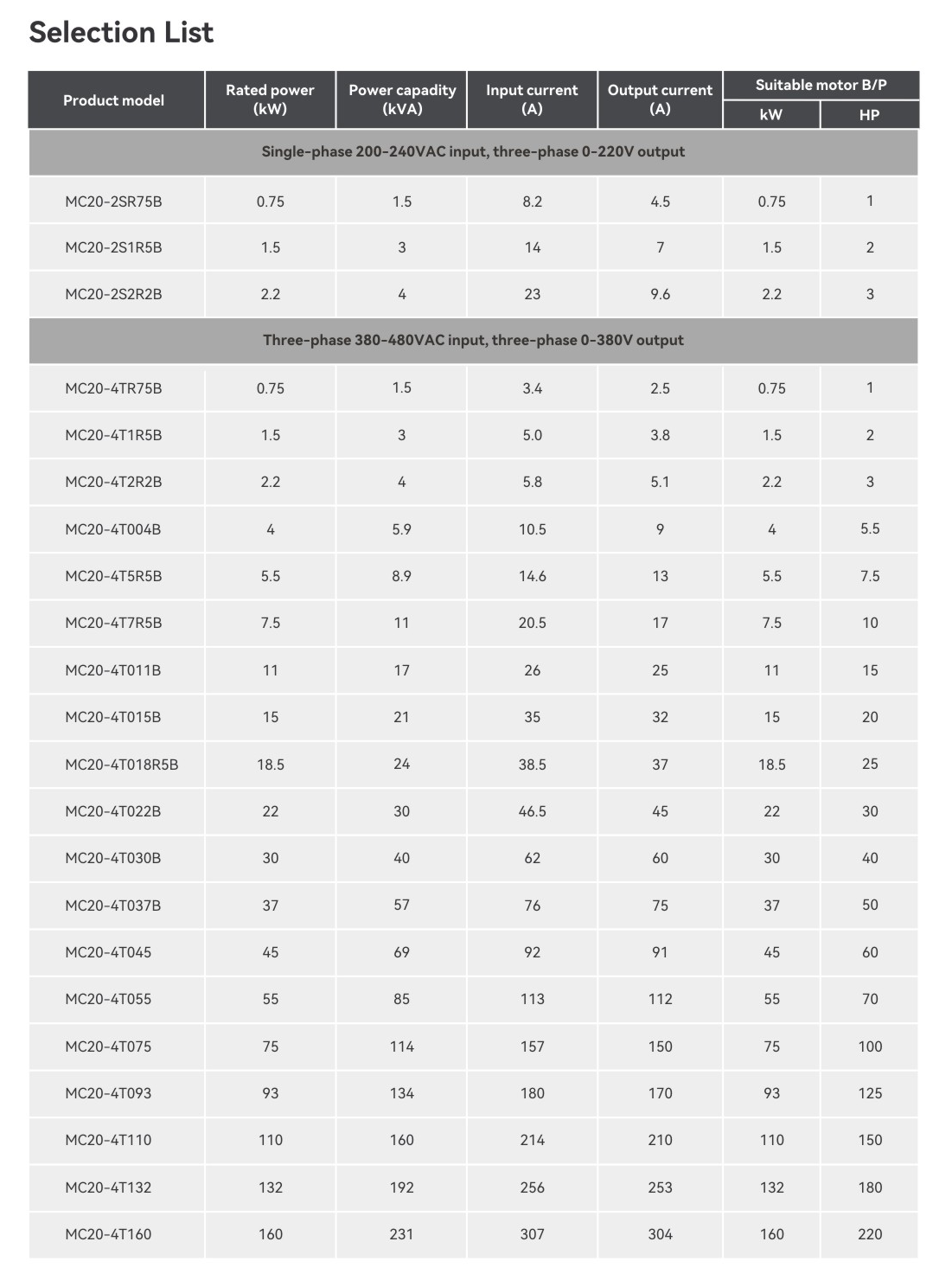

Details Document Download Specification Model Description Selection List & Size Description Related Video Related Accessories

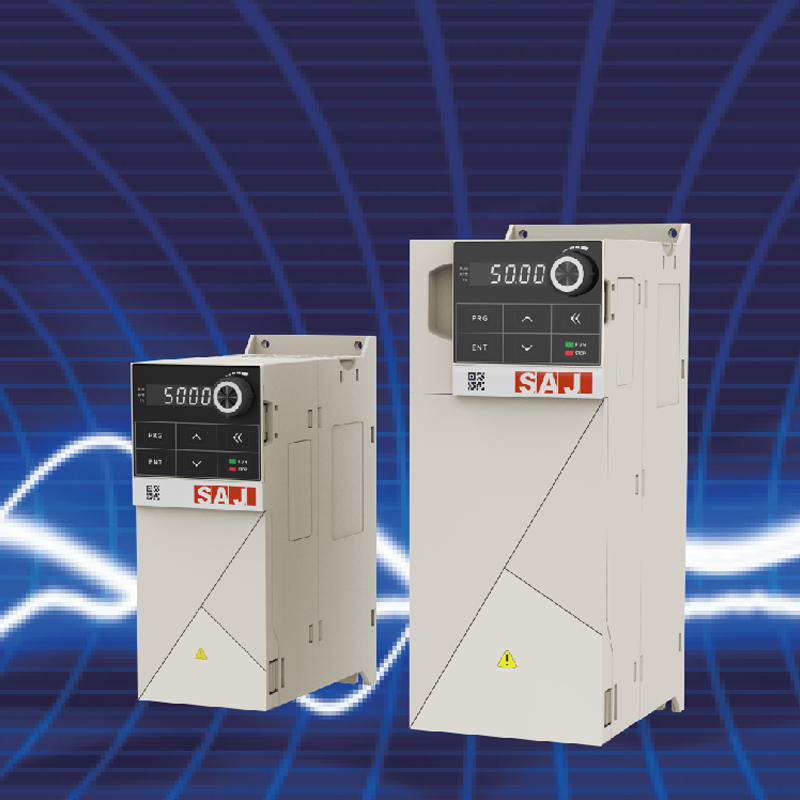

Delicate structure

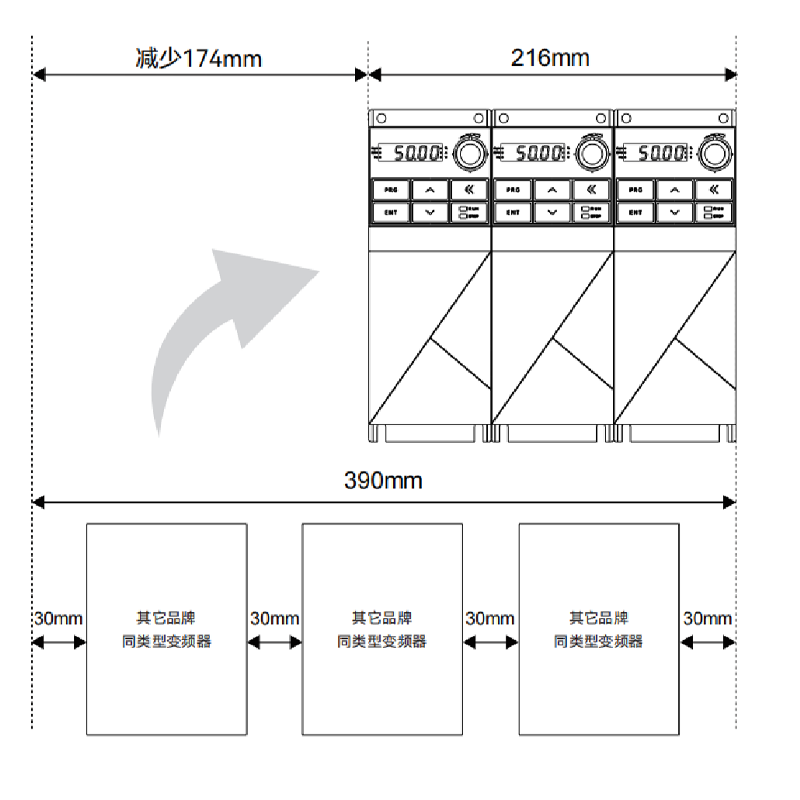

- The product is narrow-body design, and multiple products can be seamlessly fitted horizontally, providing more possibilities for distribution cabinet layout
- Flexible protective cover plate is added. You can choose whether to install the cover according to the actual application scenario
Easy to use
- The product meets the wide input voltage conditions, single-phase 200V-240V, three-phase 380V-480V theory allows fluctuation: -15%~10%

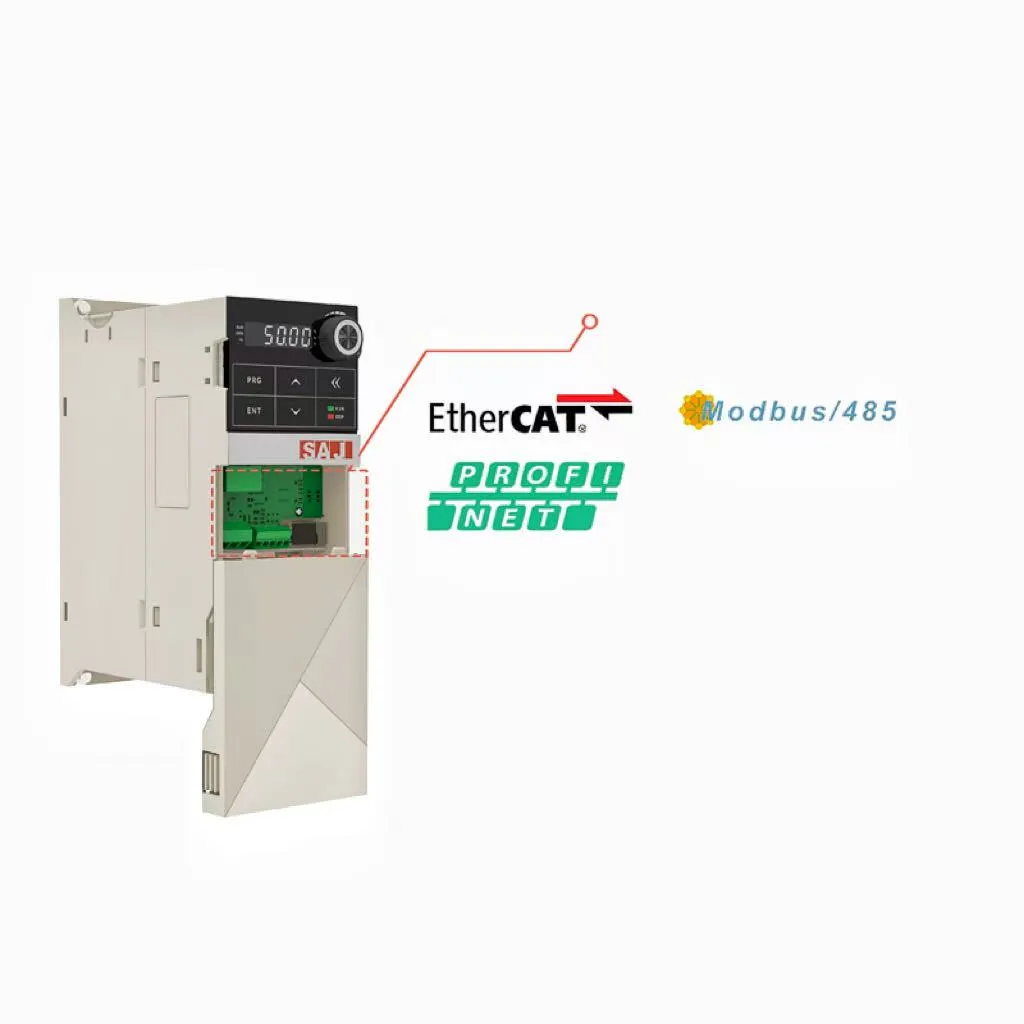

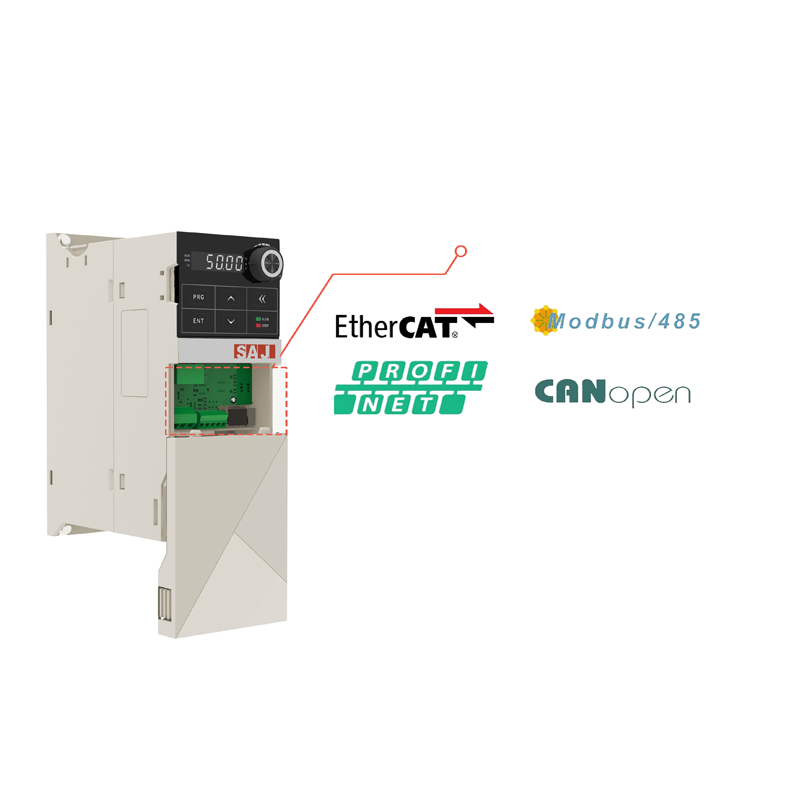

- Product standard flexible expansion interface, through the selection of different expansion cards can achieve IO/ bus communication/ closed-loop control and other functions

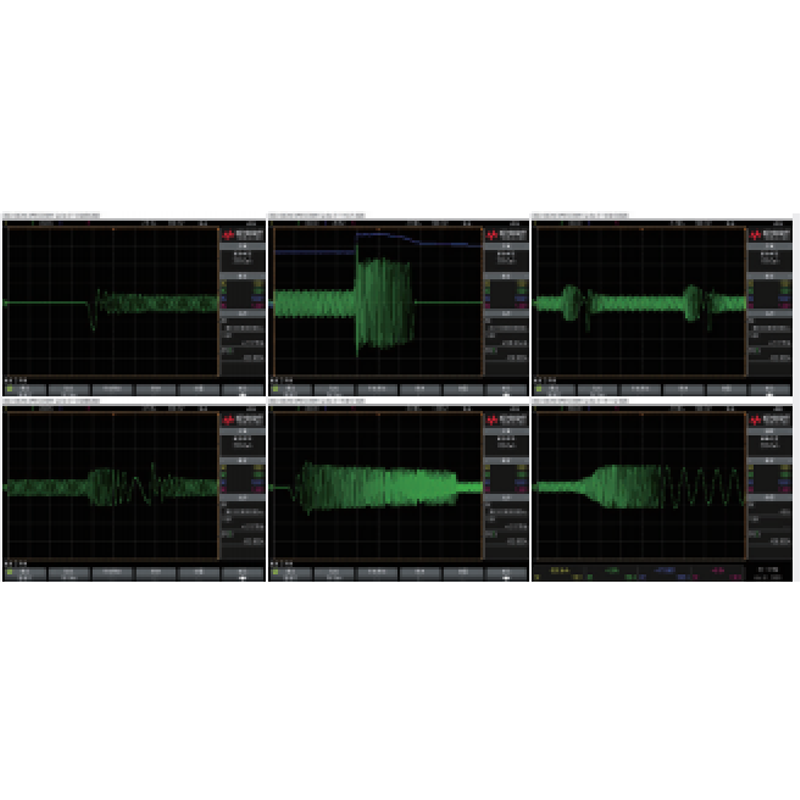

Excellent performance
- Product patented radiator design, strengthen the heat dissipation capacity of small volume, to cope with more stringent applications
- The product algorithm is greatly optimized, the computing power of the main chip is increased by about 4 times compared with the previous product, the application performance is significantly improved, and the closed-loop control mode can be expanded
Highly compatible controls
- Products are efficient and compatible, compatible with synchronous/asynchronous motors and reluctance motors
