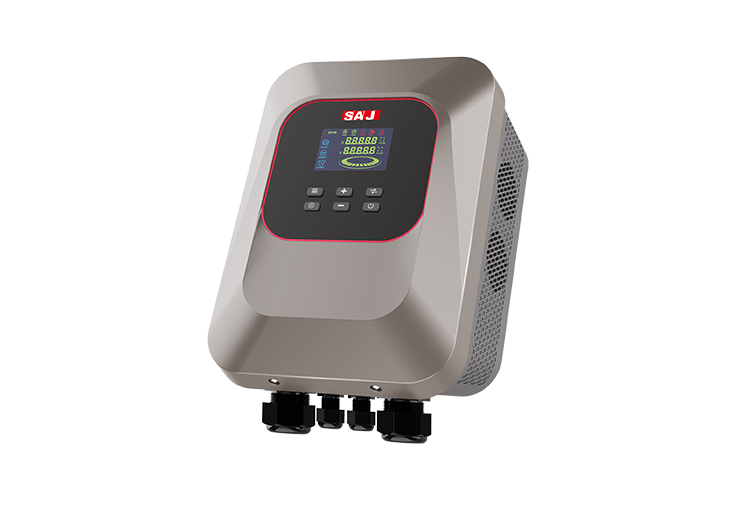

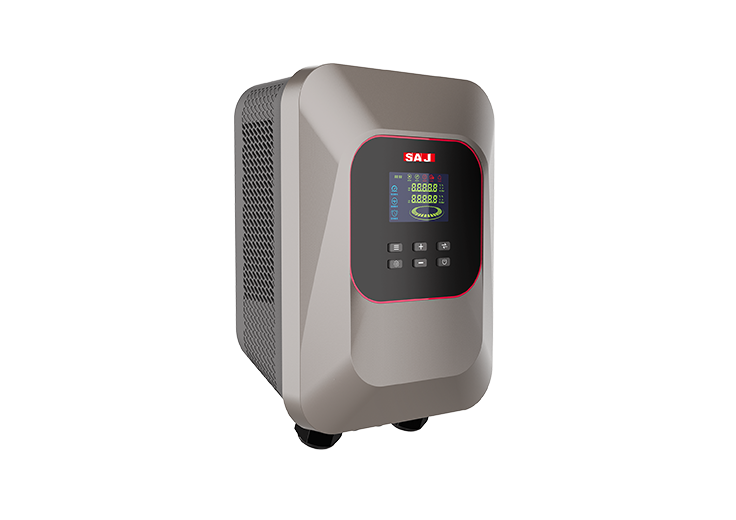

PC30 Multifunctional Pump Controller

1PH 200V-240V, 3PH 380V-480V, theoretical allowable fluctuation: -15% to 10%

The PC30 series of dedicated frequency converters for water pumps is positioned as a high-performance and high-protection backpack installation product. The product has a high-end and grand appearance, and its structural details are innovative. Adopting the latest software architecture, it leads in performance and has comprehensive functions. The hardware is diverse and can meet the certification requirements of different countries and regions. Provide efficient water supply solutions for architectural scenarios.

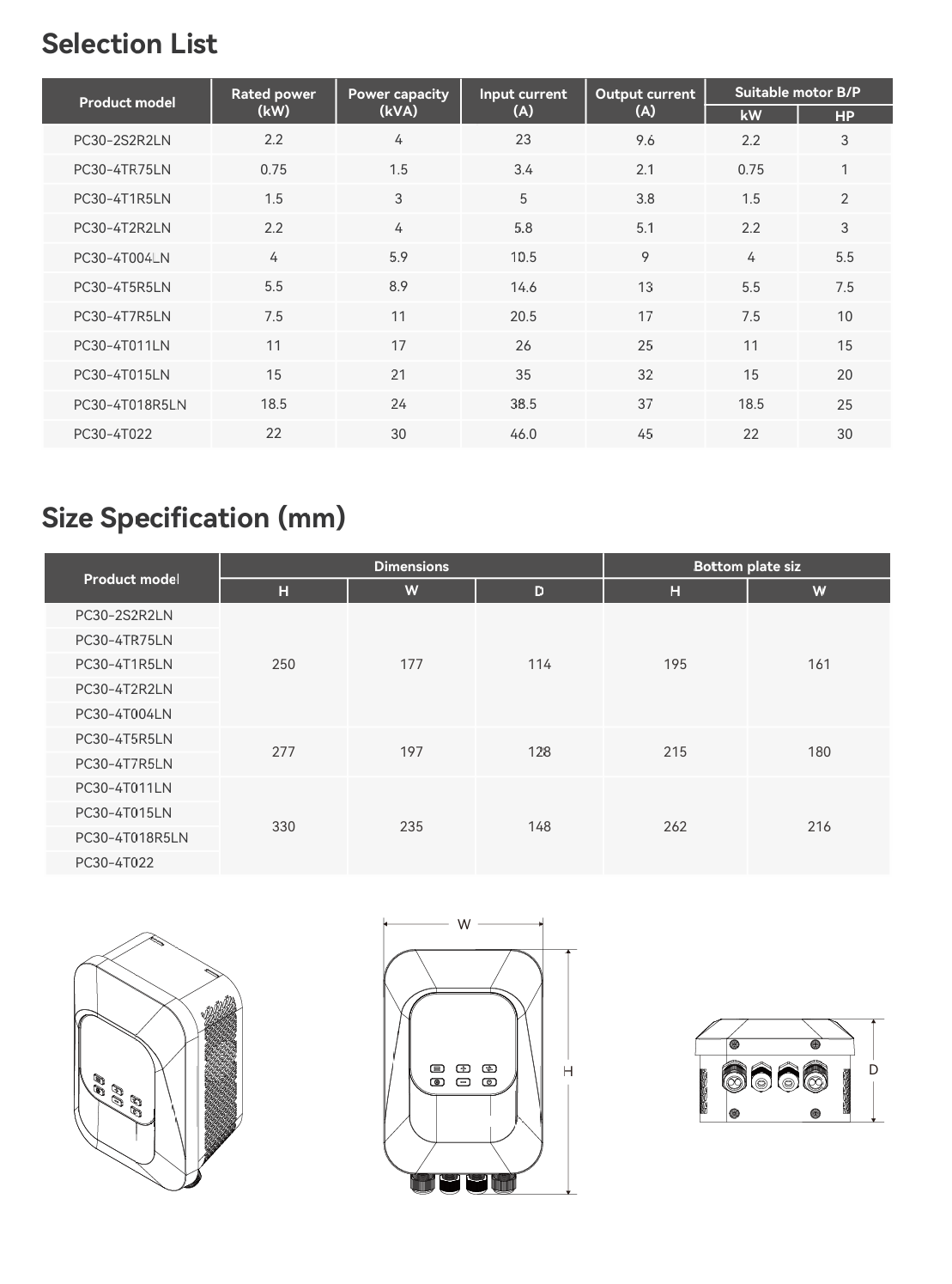

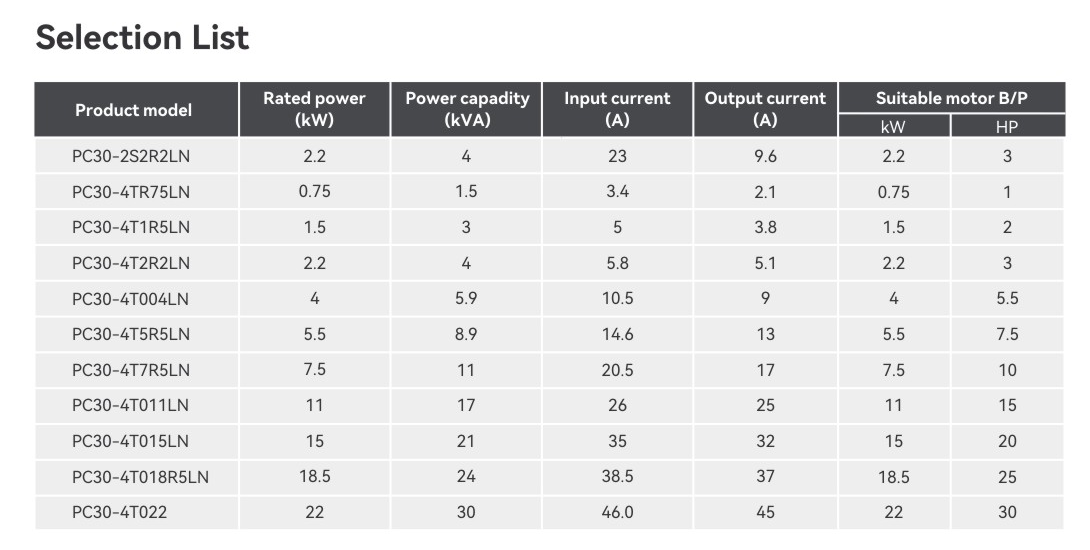

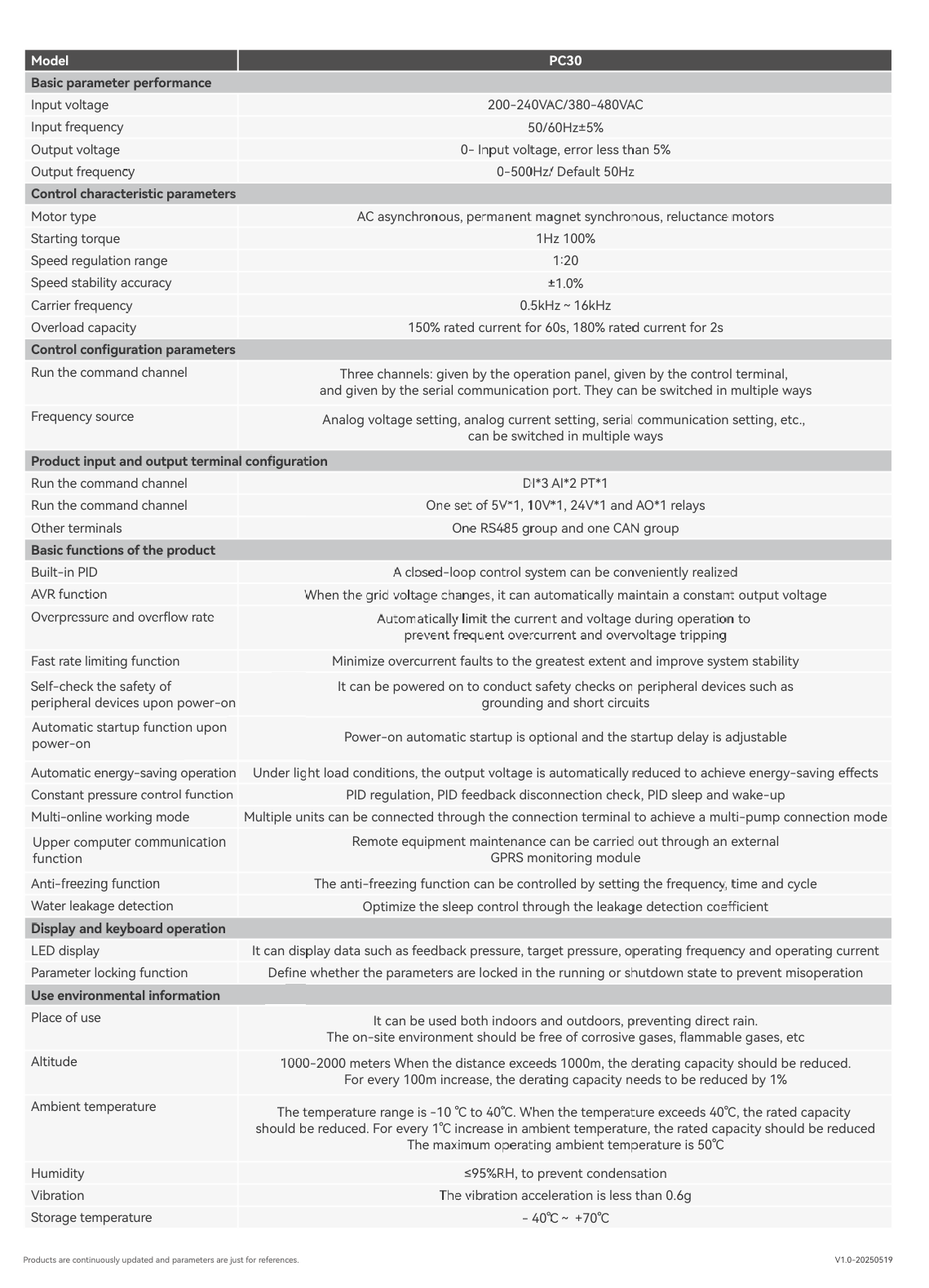

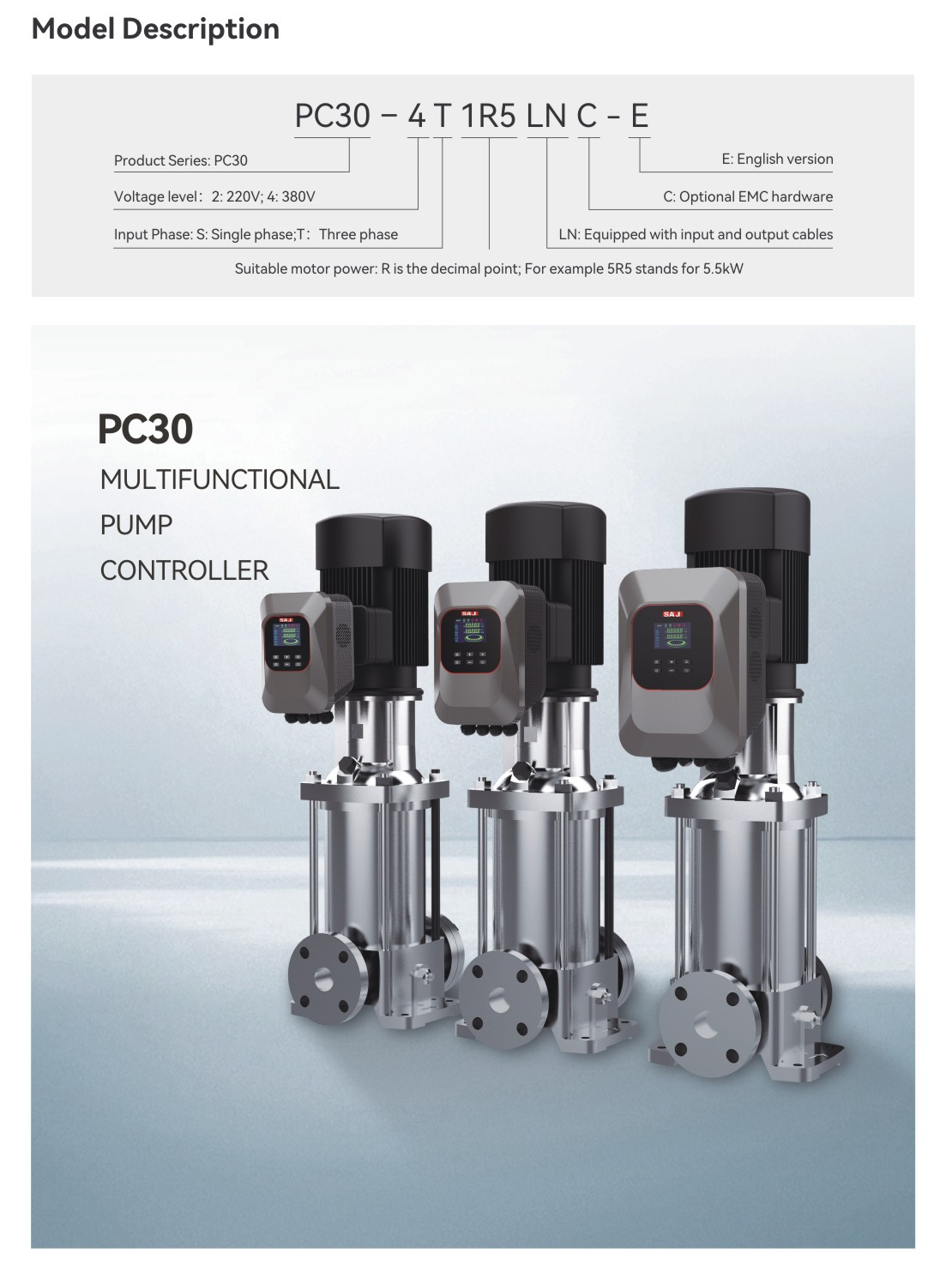

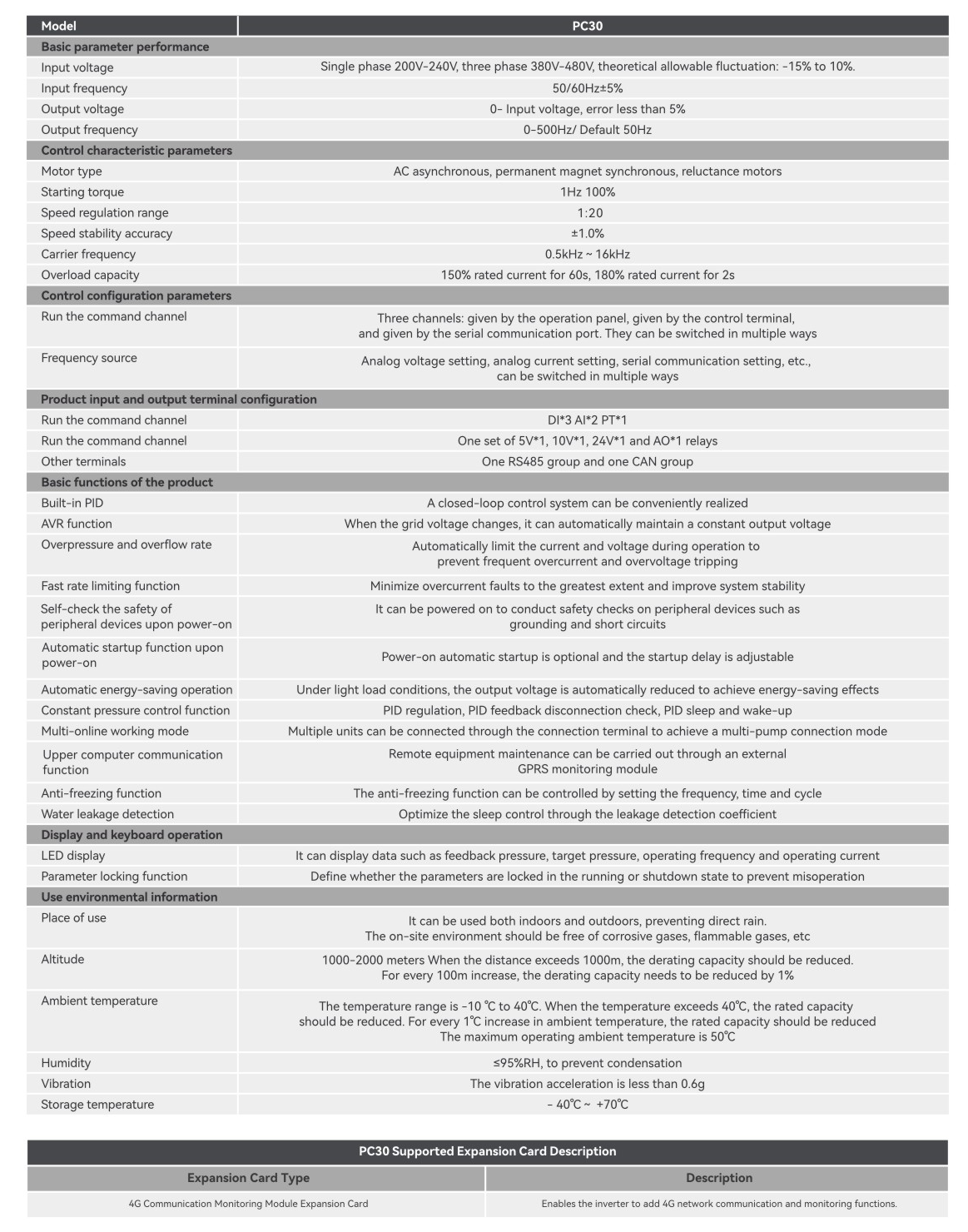

Details Document Download Specification Model Description Selection List Size Specification Related Video

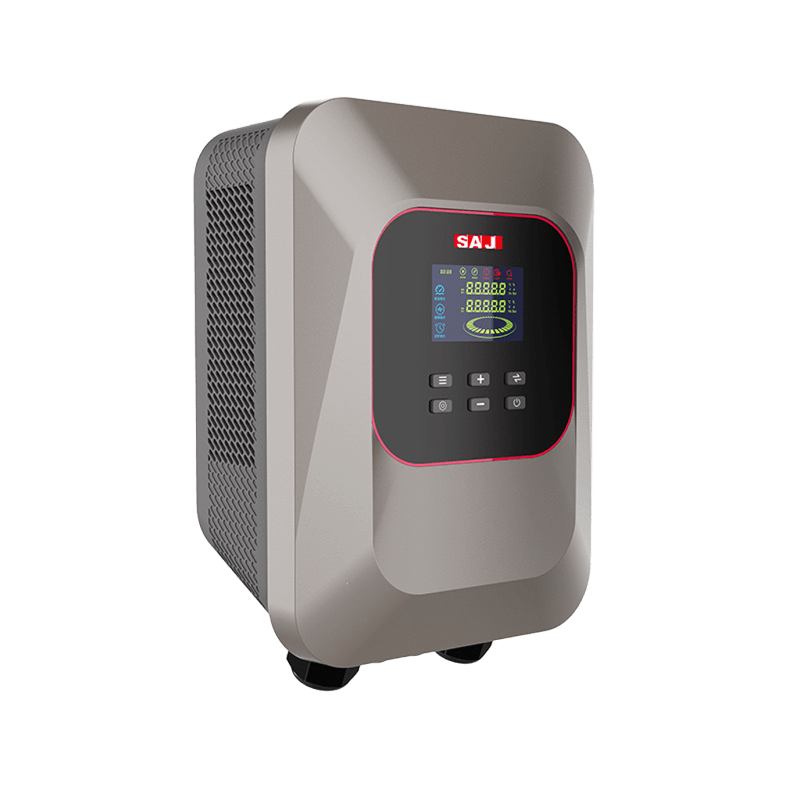

High efficiency performance
- It can support AC asynchronous, permanent magnet synchronous and reluctance motors
- The entire series is equipped with the logic of all functional requirements of the secondary water supply standard
- It is equipped with standard clock hardware and supports time-sharing water supply logic
- The low-noise algorithm solution enables the pump set to operate quietly and efficiently
Reliable hardware
- Wide voltage 380-480VAC design, suitable for use in multiple countries
- A new motor temperature sensing interface has been added, which can achieve temperature control protection
- Optional built-in EMC solution, compliant with overseas safety regulations for application
- The 220VAC platform is equipped with a PFC power factor optimization circuit

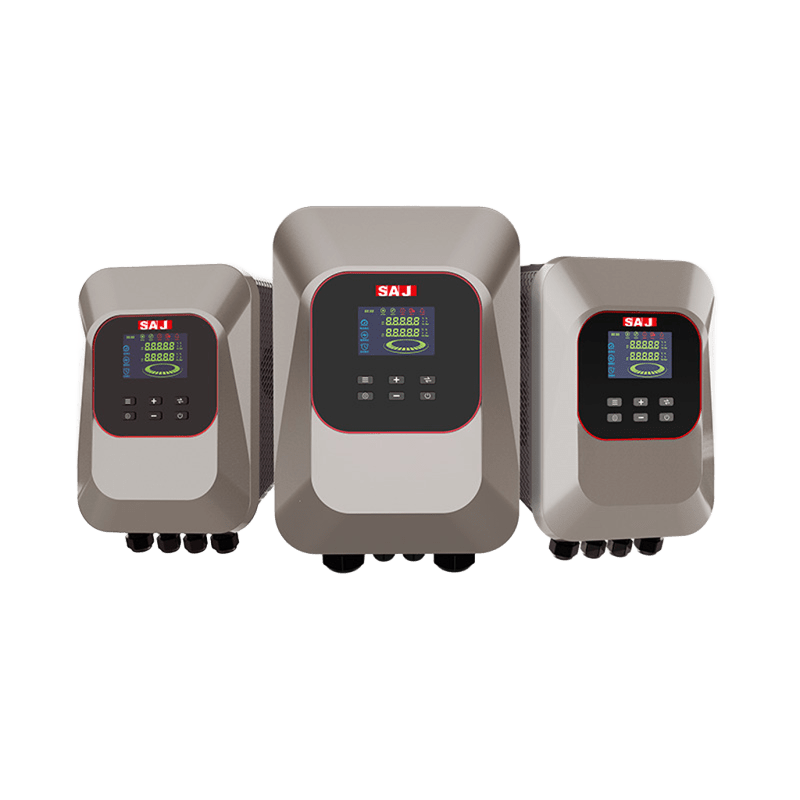

Innovative structure
- Innovative appearance design, with a bold color-matching design for the upper and lower shells.
- Illustrated large-screen display, full-screen high-end effect
- IP65 protection design, dust-proof and water-proof, safe and reliable.

Document Download

File Name	Product	Document	Language	Time	Operation
PC30-Product Brochure	PC30	Product Brochure	/	Apr 27 , 2025
PC30-User Manual	PC30	Product Brochure	/	Apr 27 , 2025
