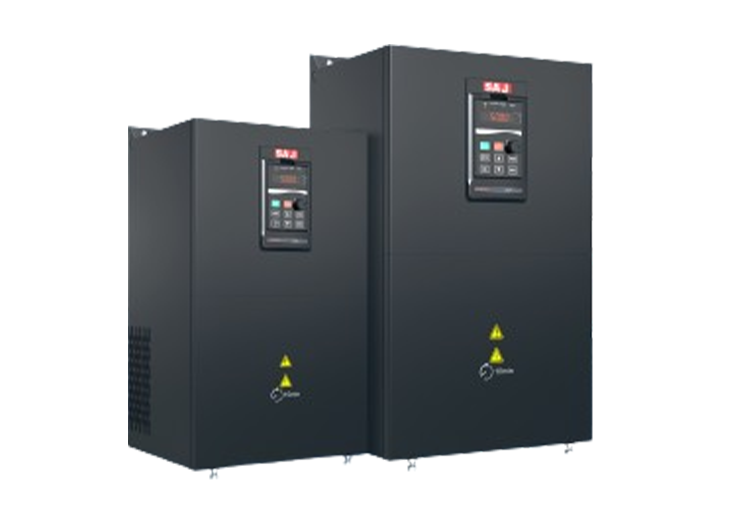

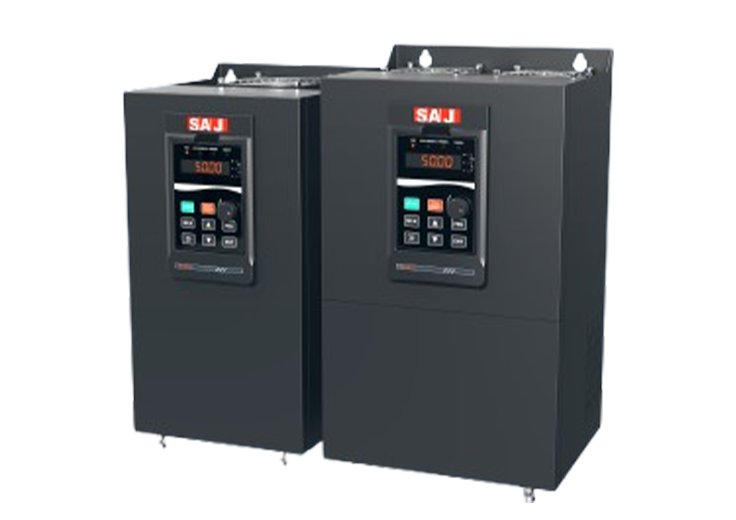

MC30 High-Performance Variable Frequency Drive

3PH 380-460VAC 11-400kW

The MC30 Series inherits the genes of a classic platform while integrating the latest algorithm technology, equipped with built-in versatile motor control algorithms adaptable to diverse scenarios. Dual expansion card slots unlock more application possibilities.

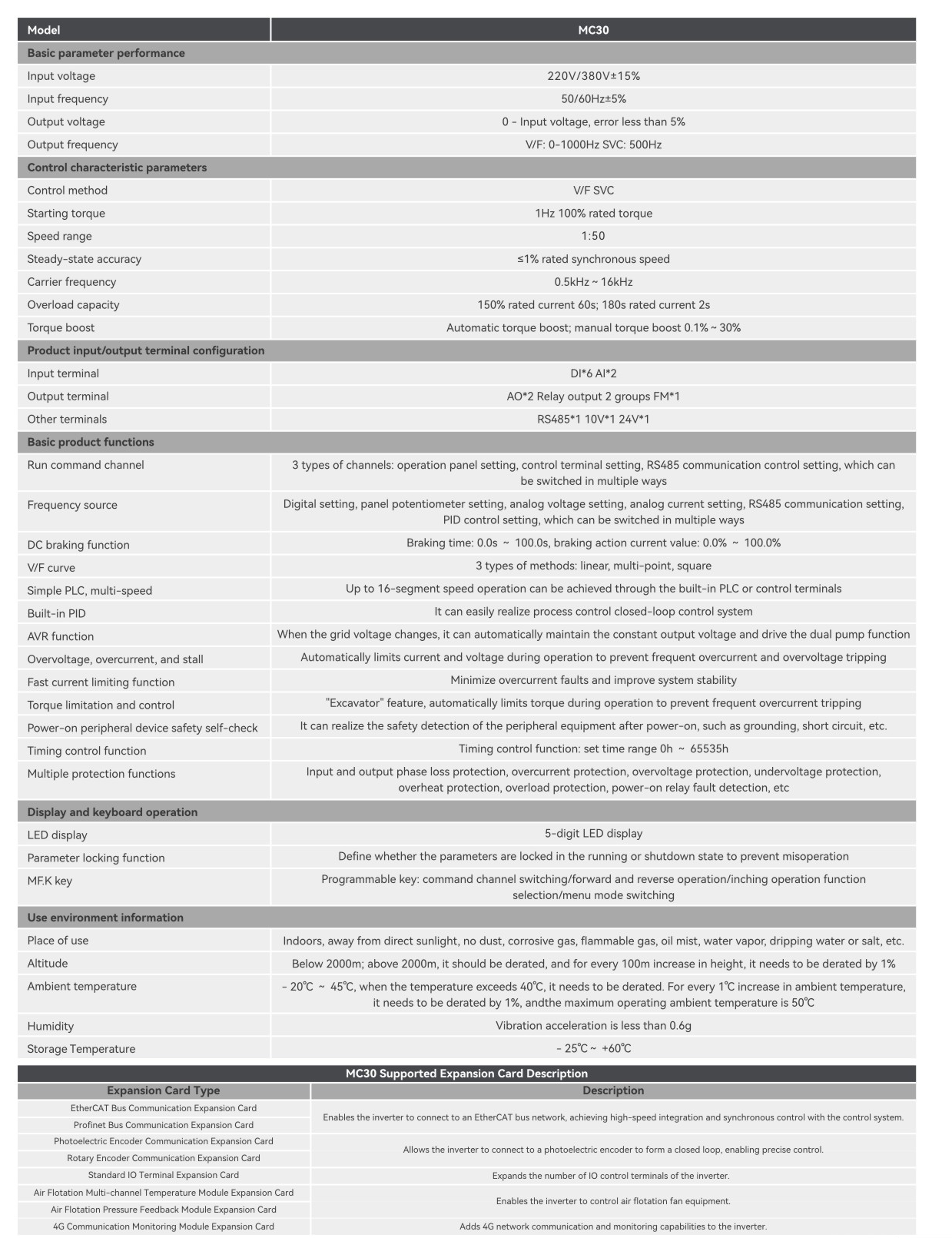

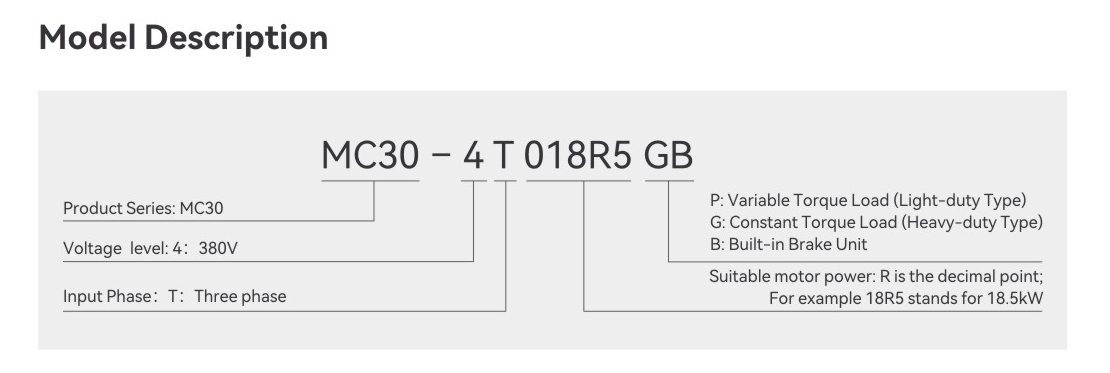

Details Document Download Specification Selection List & Size Description Model Description Related Video Related Accessories

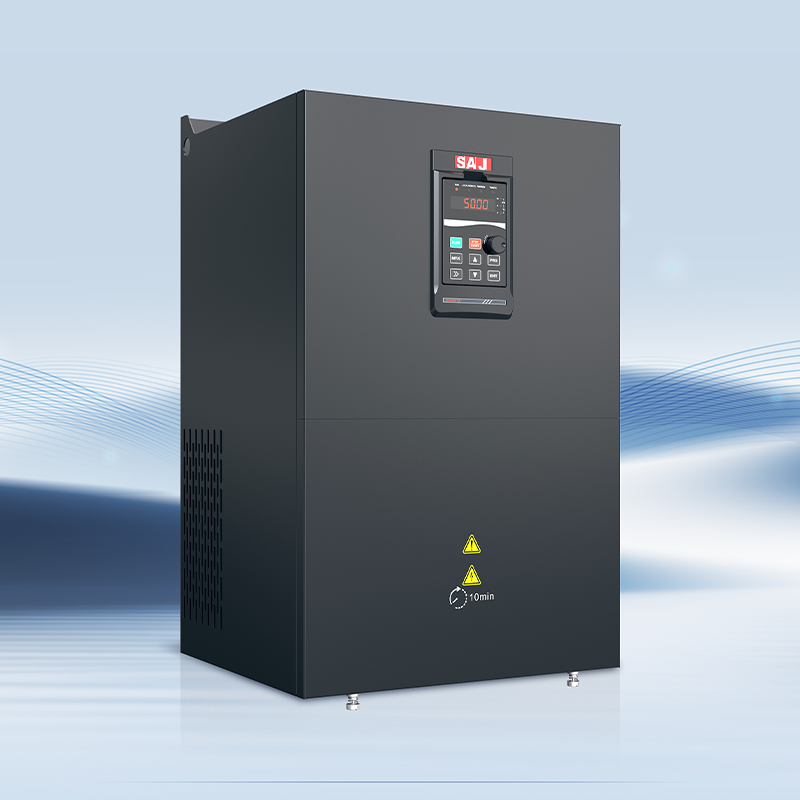

Dual-Core Design, Universal Motor Compatibility
- Compatible with both PMSM and induction motor control—no need for specific model matching, ensuring greater versatility
- Upgraded high-capacity chip delivers doubled computing power for worry-free control
Classic Platform, Rock-Solid Reliability
- Built on the VM1000B's proven structural platform—robust, compact, and trusted
- Software optimized on a high-performance platform, enhancing control precision and superior performance

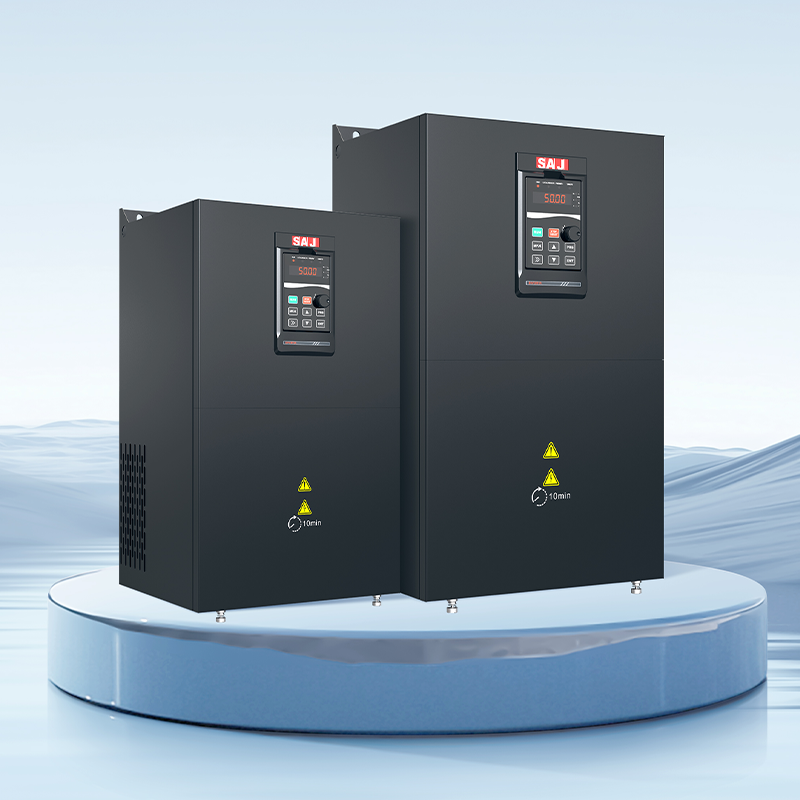

Ample Expansion, Flexible Configuration
- Features standard full I/O terminals, maximized for universal applications
- Supports dual expansion slots for modular upgrades, enabling customized functionality
