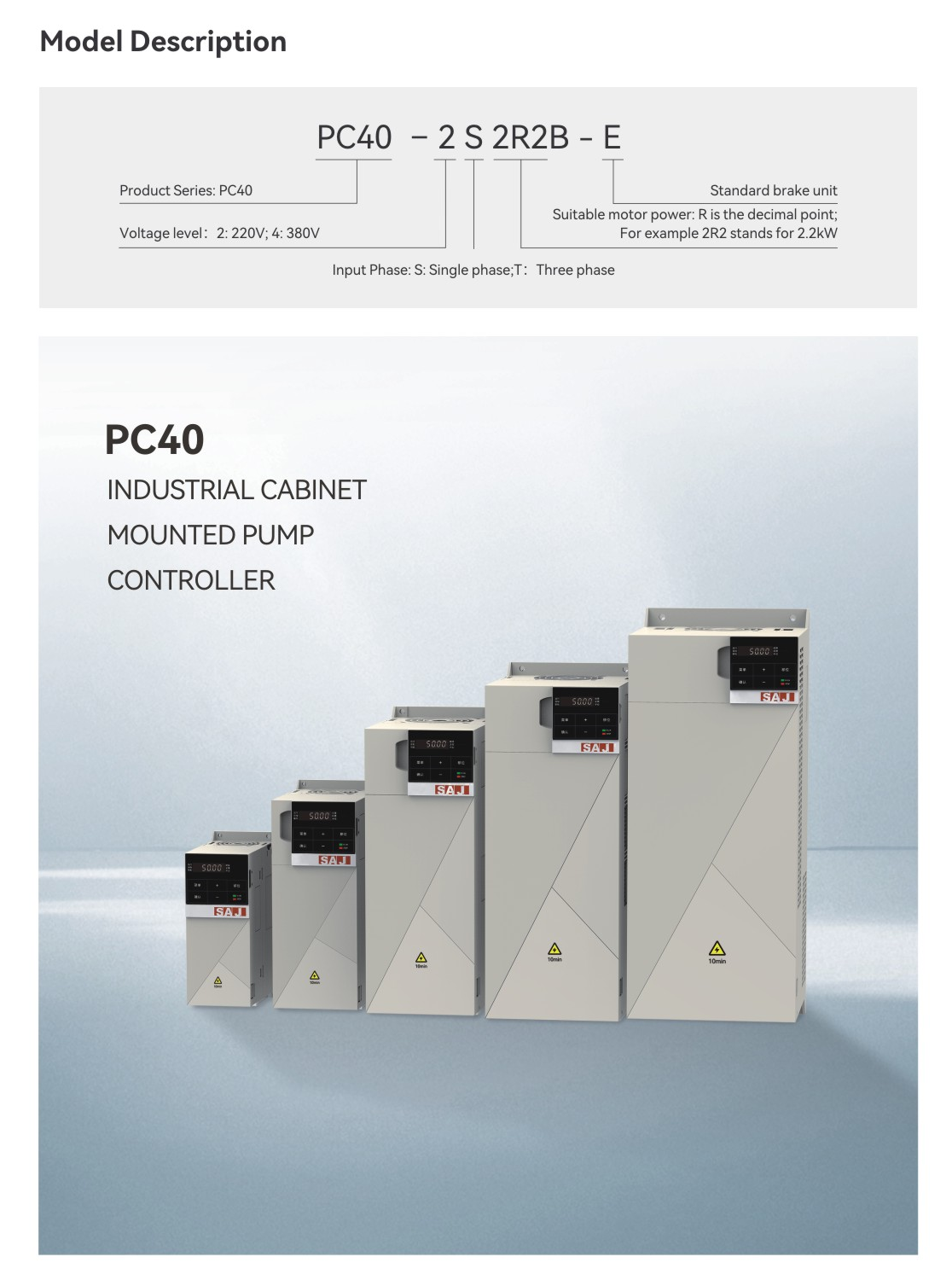

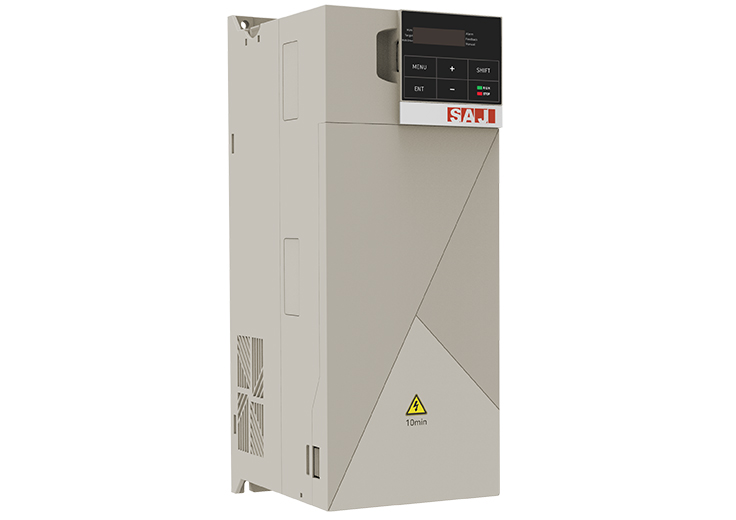

PC40 Industrial Water Equipment Controller

PC40 1PH 2.2kW ｜ 3PH 2.2-37kW
Compatible with pump motors of 2.2kW or lower

Narrow book-style compact design, suitable for in-cabinet installation, space occupancy significantly reduced, support for dual-channel sensor access for accurate detection, support for optional expansion card flexibility to achieve more functionality.

Details Document Download Specification Model Description Selection List & Size Description Related Video Related Accessories

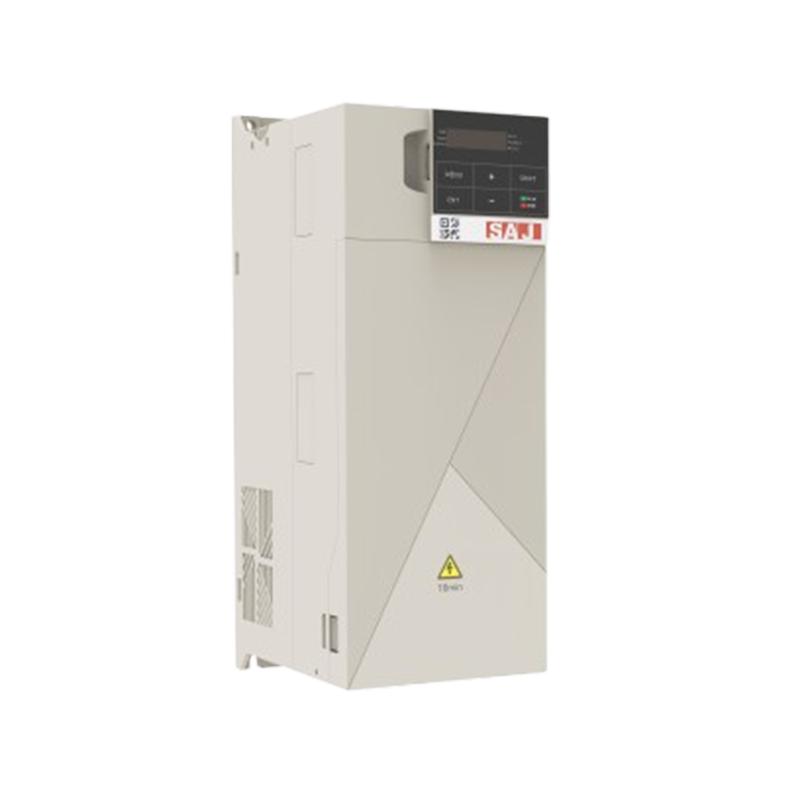

Compact, compact and flexible installation
- The product is book-style design, more flexible installation space, compared with traditional products can be matched with a smaller control cabinet to enhance the economy.
- The product supports external keyboard and does not require tray installation, compatible with conventional board thickness, simplifying the difficulty of cabinet installation.

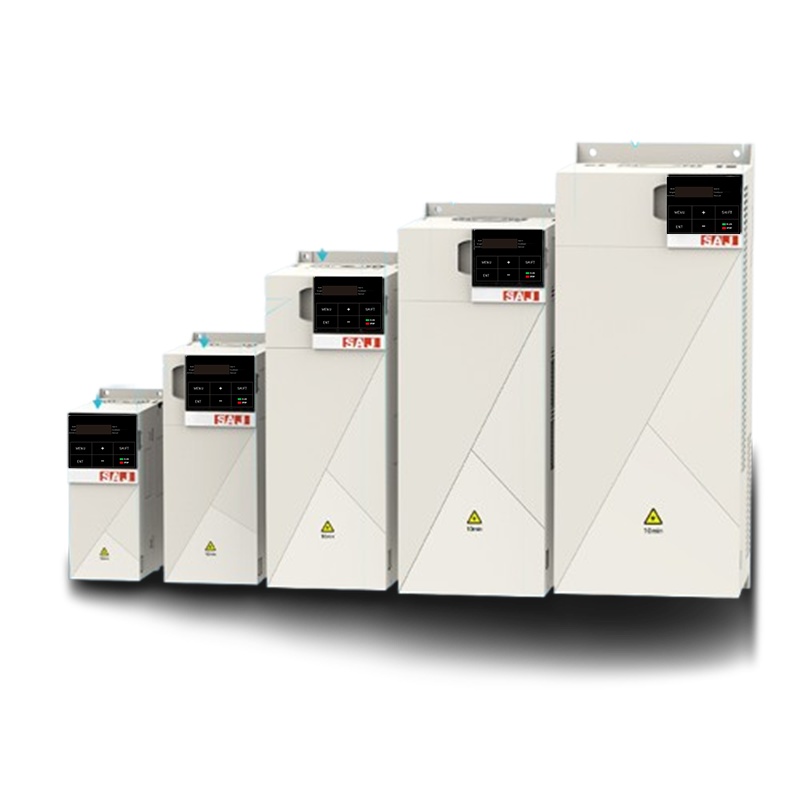

High-efficiency heat dissipation, worry-free operation.
- Patented heat dissipation structure, small size and strong heat dissipation, which brings the possibility of long-term stable operation of the equipment.
- Side cover, increase heat dissipation capacity, strengthen PCB protection design, reduce the impact of foreign objects

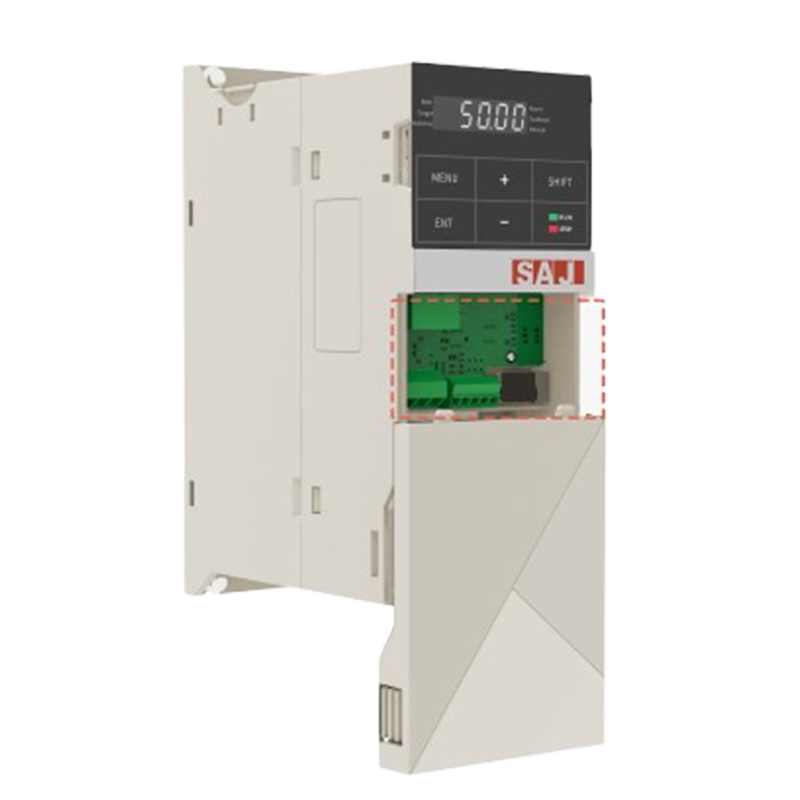

Water-specific logic, one-button use
- Software based on AI algorithms, factory default compatible with most applications, only a small amount of parameter modification to meet the best application status.
- Simple control, a key to modify the set pressure, without complex operation, equipment status streamlined display
