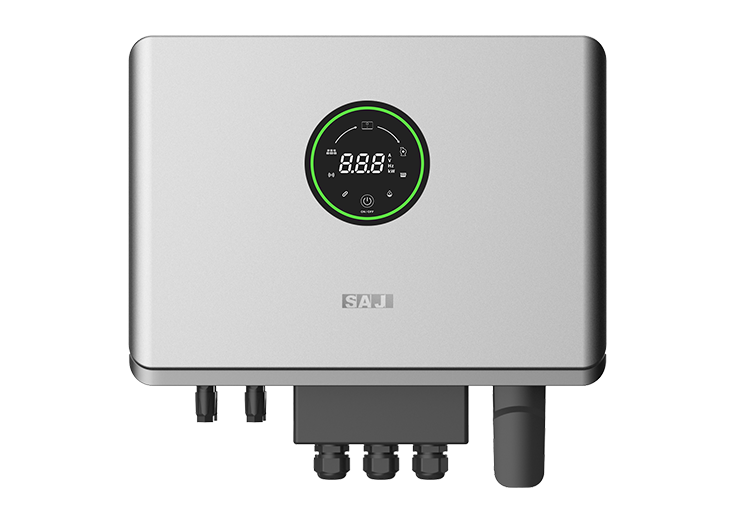

PDS51 High Protection Solar Pump Controller

1PH 150-230VAC/100-450VDC 2.2kW
3PH 280-480VAC/220-900VDC 2.2-11kW

PDS51 is a high protection solar pump controller designed for harsh outdoor environment, which integrates efficient energy conversion, intelligent frequency conversion control and excellent protective function to ensure normal use in poor application environment, and is an efficient solution for field water supply irrigation.

Details Document Download Specification Model Description Selection List & Size Description Related Video Related Accessories

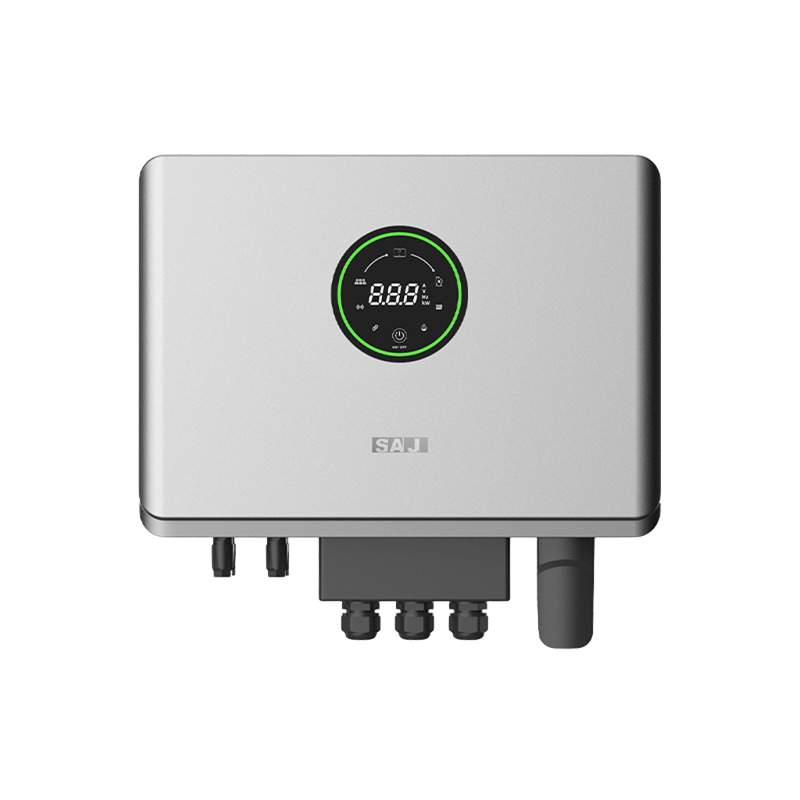

High efficiency conversion
- The product also meets the AC/DC power input, without manual switching, efficient and easy to use
- Built-in MPPT algorithm, intelligent tracking of photovoltaic module maximum power output point, to ensure maximum efficiency conversion
- 2.2kW built-in booster module to increase product efficiency and reduce component construction costs

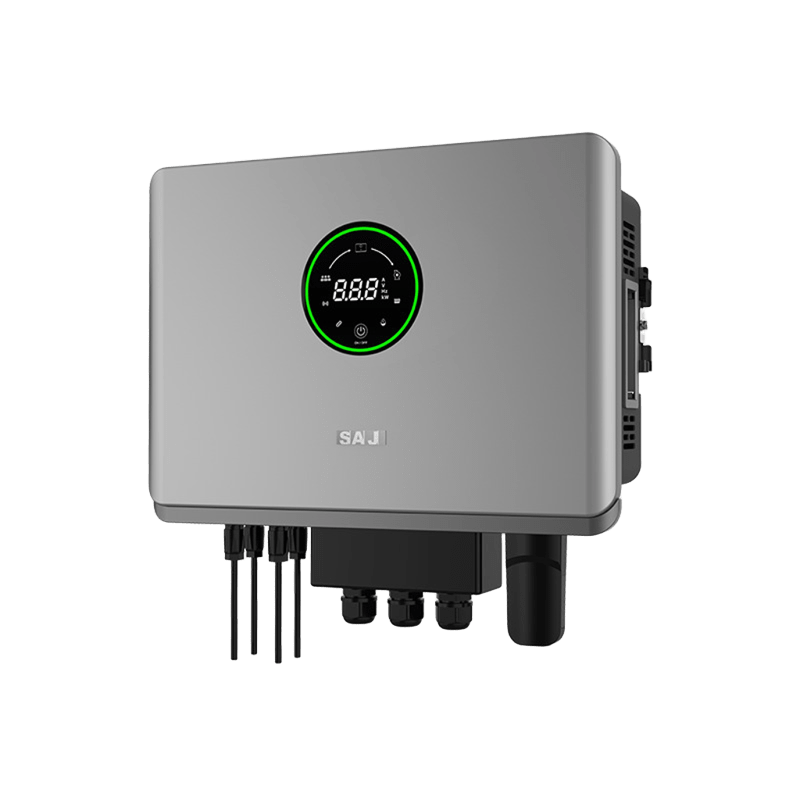

Reinforced structural design
- Product added high protection design to meet IP54 protection standards, can be installed independently without the power distributioncabinet
- The product uses natural heat dissipation, no need to install a cooling fan, low noise while ensuring the best cooling effect of components
Convenient application
- Product standard with efficient control software, according to the water pressure sensor signal automatically adjust the speed and power of the pump, to achieve accurate water supply, avoid energy waste
- With optional components, the product can achieve remote OTA upgrades, and with the intelligent IOT monitoring platform can achieve remote status monitoring and real-time operation
