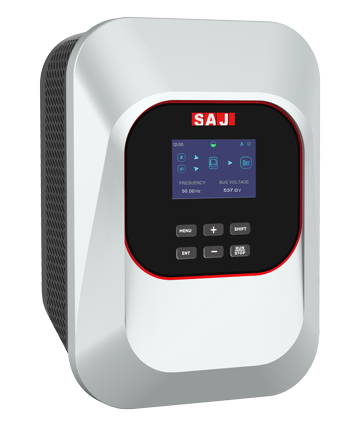

SC30 Solar Water Pump Controller

1PH 220V Input | 3PH 220v output: 2.2kw
3PH 380V Input|3PH 380V Output: 2.2-22kW

The SC30 series is a high-protection product tailored for solar water pumping systems. Its housing material complieswith UL746C F1 UV resistance and UL746B certifications Featuring IP65 high protection rating, it integrates a built-inboost module and HD LCD screen. Supporting independent RS485 & CAN dual communication, it enables loT remote

management, ideal for farmland irrigation, remote water supply and many other applications.

Details Document Download Specification Model Description Selection List Size Specification Related Video

Armored Enclosure, Superior Protection
- Combining stylish appearance with robust performance, the unit features an IP65 high-protection rating and F1 UV-resistant housing, standing ﬁrm against a wide range of harsh outdoor conditions.
- Fitted with an LCD screen for crystal-clear operational status. It supports simultaneous display of 5 lines of parameters and ﬂexible multi-language customization.
Highly Integrated, Efﬁcient Control
- Built-in boost module provides a voltage lift up to 165V. It eliminates external boosters and reduces PV module quantity, slashing the overall system investment.
- Built-in DC input cables eliminate combiner boxes, enabling fast on-site wiring. It delivers durable long-term operation in fully exposed open-air environments.
Advanced Algorithms, Stable & Reliable
- MPPT tracking efﬁciency reaches 99.8%, capturing real-time light changes to maximize solar power utilization.
- New built-in diesel generator software function delivers 24-hour continuous power supply to ensure non-stop water pumping all day long.
- Adopts brand-newd pump self-cleaning control algorithm. Periodic forward & reverse rotation ﬂushes sediment inside the pump to avoid clogging and extend pump service life.
- Integrated multiple advanced control algorithms, with 29+ intelligent protection functions to maximize the service life of the system.
Dual Communication, System Interconnection
- Equipped with independent RS485 & CAN dual communication interfaces for stable multi-unit parallel networking.
- Supports IoT remote monitoring and parameter conﬁguration. The integrated hardware clock enables timed water supply, achieving unattended remote operation.
